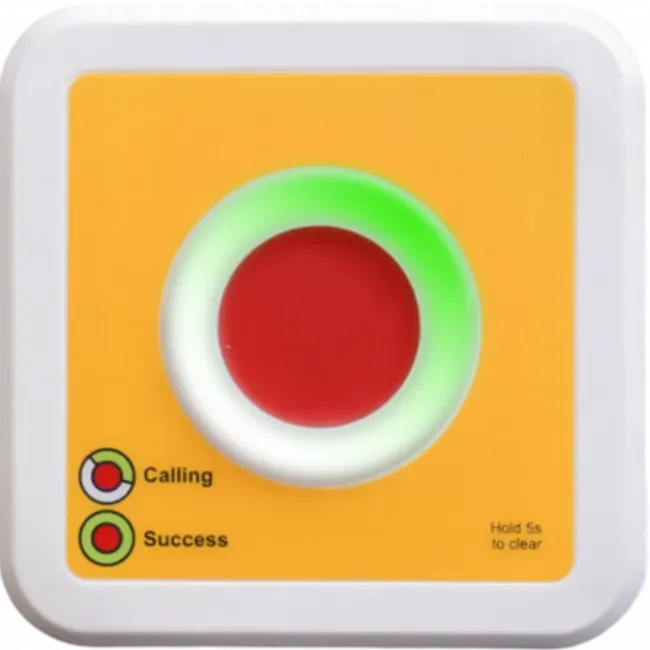

ioButton LTE

Name: ioButton LTE
Price: 99.0 EUR
Availability: InStock

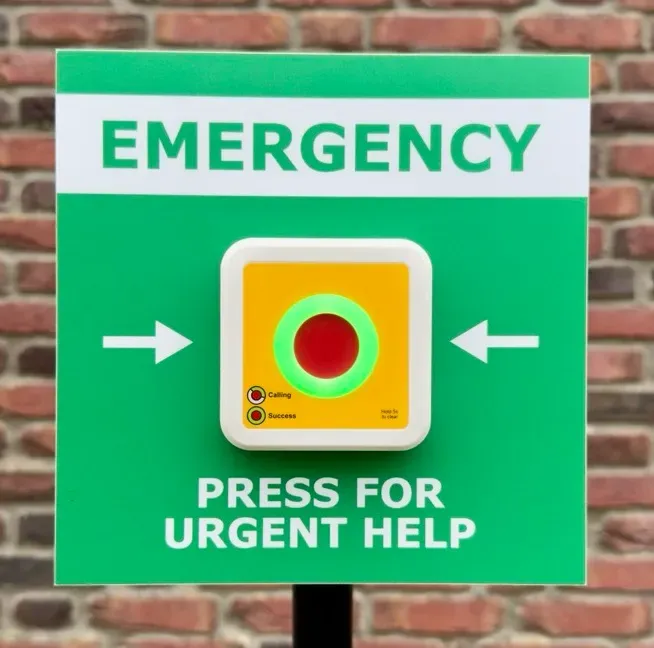

The ioButton is a professional IoT panic button for people safety and emergency alerting in workplaces, facilities and industrial environments.

This is the LTE (LTE-M and NB-IoT) version, designed for simple installation, long battery life, and minimal maintenance.

99.00 €

Specifications

LTE-M + NB-IoTCellular IoT connectivity

RGB LED ringVisual and vibration feedback

90 dBPiezo alarm

10+ yearsBattery life*

Connectivity	LTE-M (Cat-M1) and NB-IoT (Cat-NB1 / Cat-NB2); 3GPP LTE Release 14
Frequency range	700-2,200 MHz
SIM & network	Nano-SIM with configurable APN and PIN; freedom to choose your LTE provider
Data connections	Secure, power-efficient UDP connections
Panic button	Red push button with Cherry MX tactile switch
Visual feedback	Full-colour RGB LED ring
Haptic feedback	Vibration motor
Audible alert	90 dB piezo alarm
Configuration	Over the air via LTE or via the ioTracker configurator app using Bluetooth 5.1
BLE beacon support	Scanning for iBeacon, AltBeacon and Eddystone; beacon filters and trigger actions
Firmware updates	Firmware over-the-air updates (FOTA); Wi-Fi 802.11 b/g/n, 2.4 GHz for firmware updates

Battery	User-replaceable ER14500 (AA), 2,400 mAh; e.g. Saft LS14500
Battery life	10+ years, depending on configuration, usage and operating conditions
Dimensions	78 × 78 × 20.4 mm
Weight	70 g including battery
Ingress protection	IP40
Operating temperature	-20 °C to +65 °C
Mounting	Included detachable wall-mount bracket; installation using double-sided tape or screws
Integration	Open protocol; integrate via the ioThings platform or directly into your own platform using the ioThings IoT Gateway software module
Antenna	Automatic, continuous antenna performance tuning
Custom branding	Customisable front sticker on request; dedicated surface for a customer label
